- 产品详情

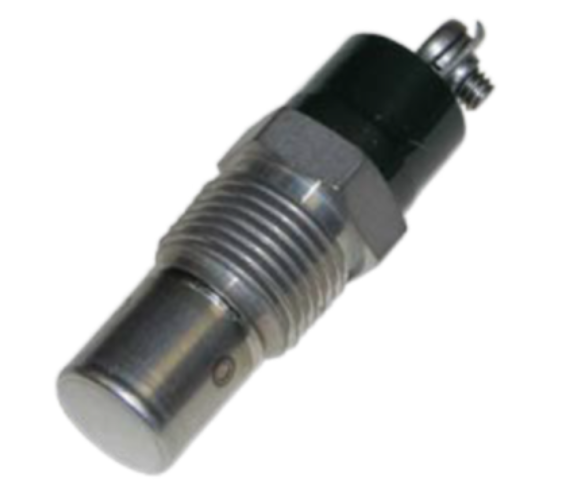

5020系列是设计用于高抗振性应用的单掷式速动密封温度控制器。其速动盘位于探头的顶端，确?？焖俣既返叵煊ξ露缺浠?。采用焊接结构和接地外壳的密封恒温器符合MIL-STD-202方法107测试条件B的热冲击规范，并能承受高达1500 PSI的压力暴露限制。
主要特点包括：
- 1/2英寸圆盘按钮样式设计
- 采用密封玻璃密封，仅接地外壳
- 适用于浸入式传感器的理想选择
规格参数：
| Contact Ratings | Cycles | Voltage | Amps | Case Type |
| 100,000 | 12 or 32 VDC | 3 (Resistive) | Grounded Case | |
| Contact Operations | Either close on rise (make) or open on rise (break), SPST (Single Pole, Single Throw) | |||
| Operating Temperature | +35oF to 480oF (+1.67oC to 249oC) | |||
| Dielectric Strength | 500 VAC, 60Hz (grounded case) terminals to case across open contacts | |||
| Vibration | .06DA, 10-55 Hz, 20G 20-2000 Hz | |||
| Shock | .75G 6ms duration (sawtooth) | |||
| Military Specifications | 5020-13 conforms to MIL-S-12285/1, thermal shock per MIL-STD-202, Method 107, Condition B | |||
| Materials | Stainless steel body and tube, compression glass seal, Mylar sleeve, epoxy fill potting, stainless or plated steel terminals, fine | |||
| silver contacts | ||||
应用：
液压系统
脱脂剂
工业和便携式压缩机
制冷系统
发电机组
化学浴
发动机冷却液
机油和变速箱?；?/p>

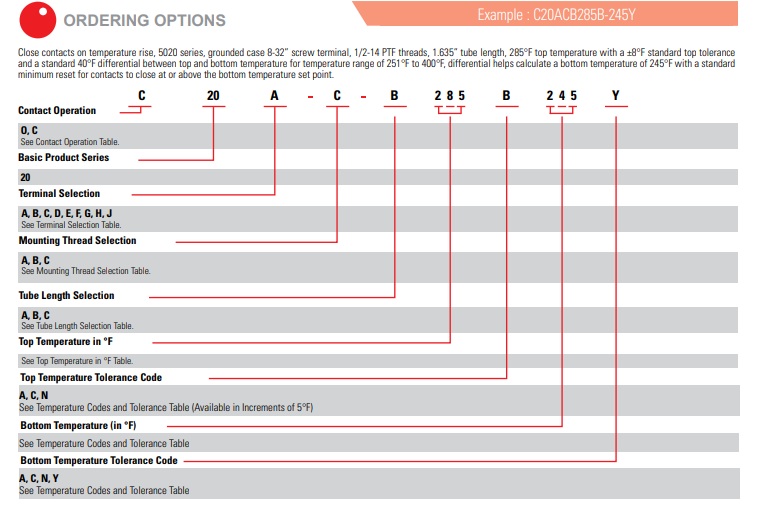

订购指南：
