    FPGA现场可编程门阵列LCMXO3LF-6900C-6BG400C

    发布于：2023-11-15 15:57:42

    品牌名称：Lattice

    重要参数：

    型号：MachXO3系列

    I/O: 335pins

    电源电压：1.2V

    封装：BGA-400pin


    • 产品详情

    简化的控制 PLD 设计和调试 – 具有多个 I/O bank、广泛的信号标准、每引脚可编程性和业内最高的 I/O 逻辑比 - 无需牺牲特性和功能。在MachXO3器件系列中集成更多功能，具有多达9400个LUT和384个I/O。

    安全可靠 – 使用密码?；け；つ纳杓泼馐芏褚夤セ?，并通过最先进的软错误检测和软纠错功能减少软错误。

    扩展温度灵活性 – 使用符合 AEC-Q100 标准的汽车级 XO3LF 器件实现您的下一个汽车或坚固环境设计。

    特征:

    · 多达 9400 个 LUT，具有多达 384 个 I/O 引脚

    · 即时启动 1 ms 启动，带后台升级、无中断 I/O 重新配置和双启动错误恢复

    · 提供 3.3/2.5 V 内核或低功耗 1.2 V 内核 – 包括 9400 LUT 器件的其他选项

    · MachXO3LF包括可编程闪存和用户闪存(UFM)

    · 采用超小(2.50 x 2.50 mm，0.4 mm间距)WLCSP封装和间距为0.50 mm和0.80 mm的BGA封装


    MachXO3系列选型指南：

    参数MachXO3L-640/
    MachXO3LF-640    		MachXO3L-1300/
    MachXO3LF-1300    		MachXO3L-2100/
    MachXO3LF-2100    		MachXO3L-4300/
    MachXO3LF-4300    		MachXO3L-6900/
    MachXO3LF-6900    		MachXO3L-9400/
    MachXO3LF-9400
    密度 LUT64013002100430069009400

    分布式 RAM

    （kbits）

    		51016345473

    EBR SRAM

    （千比特）

    		64647492240432

    UFM（仅限 kbits、

    MachXO3LF）

    		64648096256448
    VCC = 2.5 V/3.3 V-是的
    		是的
    		是的
    		是的
    		是的
    VCC = 1.2 V是的
    		是的
    		是的
    		是的
    		是的
    		是的
    温度等级1C / I / A2C / I / A2C / I / A2C / I / A2C / IC / I
    锁 相 环111222
    我2C222222
    SPI接口111111
    定时器/计数器111111
    振荡器111111
    MIPI D-PHY 支持是的是的是的是的是的是的
    多次可编程 NVCMMachXO3LMachXO3LMachXO3LMachXO3LMachXO3LMachXO3L
    可编程闪存MachXO3LFMachXO3LFMachXO3LFMachXO3LFMachXO3LFMachXO3LF

    1. C = 商业，I = 工业，A = 汽车
      2.汽车级器件仅采用MachXO3LF封装

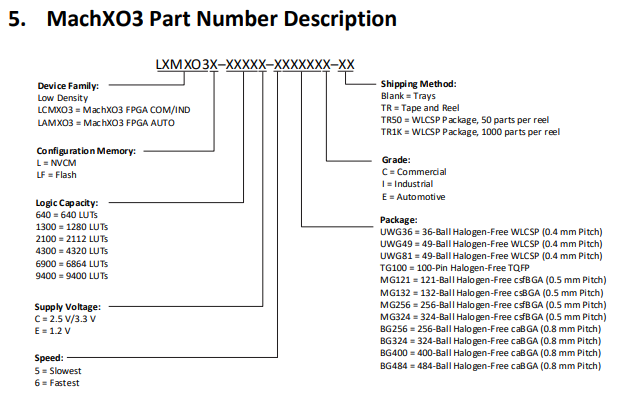

    LCMXO3LF-640E-5TG100C, LCMXO3LF-640E-6TG100C, LCMXO3LF-640E-5TG100I, LCMXO3LF-640E-6TG100I, LCMXO3LF-640E-5MG132C, LCMXO3LF-640E-6MG132C, LCMXO3LF-640E-5MG132I, LCMXO3LF-640E-6MG132I, LCMXO3LF-1300E-5TG100C, LCMXO3LF-1300E-6TG100C, LCMXO3LF-1300E-5TG100I, LCMXO3LF-1300E-6TG100I, LCMXO3LF-1300E-5MG132C, LCMXO3LF-1300E-6MG132C, LCMXO3LF-1300E-5MG132I, LCMXO3LF-1300E-6MG132I, LCMXO3LF-1300C-5TG100C, LCMXO3LF-1300C-6TG100C, LCMXO3LF-1300C-5TG100I, LCMXO3LF-1300C-6TG100I, LCMXO3LF-1300C-5MG132C, LCMXO3LF-1300C-6MG132C, LCMXO3LF-1300C-5MG132I, LCMXO3LF-1300C-6MG132I, LCMXO3LF-2100E-5TG100C, LCMXO3LF-2100E-6TG100C, LCMXO3LF-2100E-5TG100I, LCMXO3LF-2100E-6TG100I, LCMXO3LF-2100E-5MG132C, LCMXO3LF-2100E-6MG132C, LCMXO3LF-2100E-5MG132I, LCMXO3LF-2100E-6MG132I, LCMXO3LF-2100C-5TG100C, LCMXO3LF-2100C-6TG100C, LCMXO3LF-2100C-5TG100I, LCMXO3LF-2100C-6TG100I, LCMXO3LF-2100C-5MG132C, LCMXO3LF-2100C-6MG132C, LCMXO3LF-2100C-5MG132I, LCMXO3LF-2100C-6MG132I, LCMXO3LF-4300E-5MG132C, LCMXO3LF-4300E-6MG132C, LCMXO3LF-4300E-5MG132I, LCMXO3LF-4300E-6MG132I, LCMXO3LF-4300C-5MG132C, LCMXO3LF-4300C-6MG132C, LCMXO3LF-4300C-5MG132I, LCMXO3LF-4300C-6MG132I, LAMXO3LF-640E-5TG100E, LAMXO3LF-640E-5MG132E, LAMXO3LF-1300E-5TG100E, LAMXO3LF-1300C-5TG100E, LAMXO3LF-1300E-5MG132E, LAMXO3LF-1300C-5MG132E, LAMXO3LF-2100E-5TG100E, LAMXO3LF-2100C-5TG100E, LAMXO3LF-2100E-5MG132E, LAMXO3LF-2100C-5MG132E, LAMXO3LF-4300E-5MG132E, LAMXO3LF-4300C-5MG132E


    Part NumberLUTsSupply VoltageSpeedPackageLeadsTemp
    LCMXO3L-640E-5MG121C6401.2 V5Halogen-Free csfBGA121COM
    LCMXO3L-640E-6MG121C6401.2 V6Halogen-Free csfBGA121COM
    LCMXO3L-640E-5MG1216401.2 V5Halogen-Free csfBGA121IND
    LCMXO3L-640E-6MG1216401.2V6Halogen-Free csfBGA121IND

    Part NumberLUTsSupply VoltageSpeedPackageLeadsTemp
    LCMXO3L-1300E-5UWG36CTR13001.2 V5Halogen-Free WLCSP36COM
    LCMXO3L-1300E-5UWG36CTR5013001.2V5Halogen-Free WLCSP36COM
    LCMXO3L-1300E-5UWG36CTR1K13001.2V5Halogen-Free WLCSP36COM
    LCMXO3L-1300E-5UWG36ITR13001.2V5Halogen-Free WLCSP36IND
    LCMXO3L-1300E-5UWG36ITR5013001.2V5Halogen-Free WLCSP36IND
    LCMXO3L-1300E-5UWG36ITR1K13001.2V5Halogen-Free WLCSP36IND
    LCMXO3L-1300E-5MG121C13001.2V5Halogen-Free csfBGA121COM
    LCMXO3L-1300E-6MG121C13001.2V6Halogen-Free csfBGA121COM
    LCMXO3L-1300E-5MG121113001.2V5Halogen-Free csfBGA121IND
    LCMXO3L-1300E-6MG121113001.2V6Halogen-Free csfBGA121IND
    LCMXO3L-1300E-5MG256C13001.2V5Halogen-Free csfBGA256COM
    LCMXO3L-1300E-6MG256C13001.2V6Halogen-Free csfBGA256COM
    LCMXO3L-1300E-5MG256I13001.2V5Halogen-Free csfBGA256IND
    LCMXO3L-1300E-6MG256I13001.2V6Halogen-Free csfBGA256IND
    LCMXO3L-1300C-5BG256C13002.5V/3.3V5Halogen-Free caBGA256COM
    LCMXO3L-1300C-6BG256C13002.5 V/3.3 V6Halogen-Free caBGA256COM
    LCMXO3L-1300C-5BG25613002.5 V/3.3 V5Halogen-Free caBGA256IND
    LCMXO3L-1300C-6BG25613002.5 V/3.3 V6Halogen-Free caBGA256IND

    Part NumberLUTSSupply VoltageSpeedPackageLeadsTemp
    LCMXO3L-2100E-5UWG49CTR21001.2V5Halogen-Free WLCSP49COM
    LCMXO3L-2100E-5UWG49CTR5021001.2 V5Halogen-Free WLCSP49COM
    LCMXO3L-2100E-5UWG49CTR1K21001.2V5Halogen-Free WLCSP49COM
    LCMXO3L-2100E-5UWG49ITR21001.2 V5Halogen-Free WLCSP49IND
    CMXO3L-2100E-5UWG49ITR5021001.2V5Halogen-Free WLCSP49ND
    CMXO3L-2100E-5UWG49ITR1K21001.2V5Halogen-Free WLCSP49IND
    LCMXO3L-2100E-5MG121C21001.2 V5Halogen-Free csfBGA121COM
    CMXO3L-2100E-6MG121C21001.2 V6Halogen-Free csfBGA121COM

    Part NumberLUTsSupply VoltageSpeedPackageLeadsTemp.
    LCMXO3L-2100E-5MG121121001.2V5Halogen-Free csfBGA121ND
    LCMXO3L-2100E-6MG121121001.2V6Halogen-Free csfBGA121ND
    LCMXO3L-2100E-5MG256C21001.2V5Halogen-Free csfBGA256COM
    LCMXO3L-2100E-6MG256C21001.2V6Halogen-Free csfBGA256COM
    LCMXO3L-2100E-5MG256I21001.2 V5Halogen-Free csfBGA256ND
    LCMXO3L-2100E-6MG256I21001.2V6Halogen-Free csfBGA256ND
    LCMXO3L-2100E-5MG324C21001.2V5Halogen-Free csfBGA324COM
    LCMXO3L-2100E-6MG324C21001.2V6Halogen-Free csfBGA324COM
    LCMXO3L-2100E-5MG324I21001.2V5Halogen-Free csfBGA324ND
    LCMXO3L-2100E-6MG324I21001.2 V6Halogen-Free csfBGA324ND
    LCMXO3L-2100C-5BG256C21002.5 V/3.3 V5Halogen-Free caBGA256COM
    LCMXO3L-2100C-6BG256C21002.5V/3.3 V6Halogen-Free caBGA256COM
    LCMXO3L-2100C-5BG256I21002.5V/3.3 V5Halogen-Free caBGA256ND
    LCMXO3L-2100C-6BG256I21002.5V/3.3V6Halogen-Free caBGA256ND
    LCMXO3L-2100C-5BG324C21002.5V/3.3V5Halogen-Free caBGA324COM
    LCMXO3L-2100C-6BG324C21002.5 V/3.3 V6Halogen-Free caBGA324COM
    LCMXO3L-2100C-5BG32421002.5V/3.3V5Halogen-Free caBGA324ND
    LCMXO3L-2100C-6BG324121002.5V/3.3 V6Halogen-Free caBGA324ND

    Part NumberLUTsSupply VoltageSpeedPackageLeadsTemp.
    LCMXO3L-4300E-SUWG81CTR43001.2V5Halogen-Free WLCSP81COM
    LCMXO3L-4300E-SUWG81CTR5043001.2 V5Halogen-Free WLCSP81COM
    LCMXO3L-4300E-SUWG81CTR1K43001.2V5Halogen-Free WLCSP81COM
    LCMXO3L-4300E-5UWG81ITR43001.2V5Halogen-Free WLCSP81ND
    LCMXO3L-4300E-5UWG81ITR5043001.2V5Halogen-Free WLCSP81ND
    LCMXO3L-4300E-SUWG81ITR1K43001.2V5Halogen-Free WLCSP81ND
    LCMXO3L-4300E-5MG121C43001.2 V5Halogen-Free csfBGA121COM
    LCMXO3L-4300E-6MG121C43001.2V6Halogen-Free csfBGA121COM
    LCMXO3L-4300E-5MG121I43001.2V5Halogen-Free csfBGA121IND
    LCMXO3L-4300E-6MG121143001.2V6Halogen-Free csfBGA121ND
    LCMXO3L-4300E-5MG256C43001.2V5Halogen-Free csfBGA256COM
    LCMXO3L-4300E-6MG256C43001.2V6Halogen-Free csfBGA256COM
    LCMXO3L-4300E-5MG256I43001.2 V5Halogen-Free csfBGA256ND
    LCMXO3L-4300E-6MG256I43001.2V6Halogen-Free csfBGA256IND
    LCMXO3L-4300E-5MG324C43001.2V5Halogen-Free csfBGA324COM
    LCMXO3L-4300E-6MG324C43001.2V6Halogen-Free csfBGA324COM
    LCMXO3L-4300E-5MG324I43001.2V5Halogen-Free csfBGA324ND
    LCMXO3L-4300E-6MG324I43001.2V6Halogen-Free csfBGA324ND
    LCMXO3L-4300C-5BG256C43002.5V/3.3V5Halogen-Free caBGA256COM
    LCMXO3L-4300C-6BG256C43002.5V/3.3V6Halogen-Free caBGA256COM
    LCMXO3L-4300C-5BG256I43002.5V/3.3 V5Halogen-Free caBGA256ND
    LCMXO3L-4300C-6BG256I43002.5V/3.3 V6Halogen-Free caBGA256ND
    LCMXO3L-4300C-5BG324C43002.5V/3.3 V5Halogen-Free caBGA324COM
    LCMXO3L-4300C-6BG324C43002.5V/3.3V6Halogen-Free caBGA324COM
    LCMXO3L-4300C-5BG32443002.5V/3.3V5Halogen-Free caBGA324ND
    LCMXO3L-4300C-6BG32443002.5V/3.3V6Halogen-Free caBGA324ND
    LCMXO3L-4300C-5BG400C43002.5V/3.3 V5Halogen-Free caBGA400COM
    LCMXO3L-4300C-6BG400C43002.5 V/3.3V6Halogen-Free caBGA400COM

    Part NumberLUTsSupply VoltageSpeedPackageLeadsTemp.
    LCMXO3L-4300C-5BG400I43002.5V/3.3V5Halogen-Free caBGA400IND
    LCMXO3L-4300C-6BG40043002.5V/3.3 V6Halogen-Free caBGA400IND

    Part NumberLUTsSupply VoltageSpeedPackageLeadsTemp
    CMXO3L-6900E-5MG256C69001.2 V5Halogen-Free csfBGA256COM
    CMXO3L-6900E-6MG256C69001.2V6Halogen-Free csfBGA256COM
    LCMXO3L-6900E-5MG256169001.2V5Halogen-Free csfBGA256IND
    LCMXO3L-6900E-6MG256169001.2V6Halogen-Free csfBGA256IND
    CMXO3L-6900E-5MG324C69001.2V5Halogen-Free csfBGA324COM
    CMXO3L-6900E-6MG324C69001.2 V6Halogen-Free csfBGA324COM
    LCMXO3L-6900E-5MG324169001.2 V5Halogen-Free csfBGA324IND
    LCMXO3L-6900E-6MG324I69001.2V6Halogen-Free csfBGA324IND
    CMXO3L-6900C-5BG256C69002.5V/3.3 V5Halogen-Free caBGA256COM
    CMXO3L-6900C-6BG256C69002.5V/3.3 V6Halogen-Free caBGA256COM
    LCMXO3L-6900C-5BG256I69002.5V/3.3 V5Halogen-Free caBGA256IND
    LCMXO3L-6900C-6BG256I6902.5V/3.3V6Halogen-Free caBGA256IND
    CMXO3L-6900C-5BG324C69002.5V/3.3V5Halogen-Free caBGA324COM
    CMXO3L-6900C-6BG324C69002.5V/3.3 V6Halogen-Free caBGA324COM
    LCMXO3L-6900C-5BG324I6902.5V/3.3 V5Halogen-Free caBGA324IND
    LCMXO3L-6900C-6BG324I69002.5V/3.3 V6Halogen-Free caBGA324IND
    CMXO3L-6900C-5BG400C69002.5V/3.3V5Halogen-Free caBGA400COM
    CMXO3L-6900C-6BG400C69002.5V/3.3 V6Halogen-Free caBGA400COM
    LCMXO3L-6900C-5BG400I69002.5V/3.3V5Halogen-Free caBGA400IND
    LCMXO3L-6900C-6BG40069002.5V/3.3 V6Halogen-Free caBGA400IND

    Part NumberLUTsSupply VoltageSpeedPackageLeadsTemp
    CMXO3L-9400E-5MG256C94001.2V5Halogen-Free csfBGA256COM
    CMXO3L-9400E-6MG256C94001.2 V6Halogen-Free csfBGA256COM
    LCMXO3L-9400E-5MG256194001.2 V5Halogen-Free csfBGA256IND
    LCMXO3L-9400E-6MG256194001.2V6Halogen-Free csfBGA256IND
    LCMXO3L-9400E-5BG256C94001.2V5Halogen-Free caBGA256COM
    CMXO3L-9400E-6BG256C94001.2V6Halogen-Free caBGA256COM
    LCMXO3L-9400E-5BG256I94001.2V5Halogen-Free caBGA256IND
    LCMXO3L-9400E-68G256I94001.2V6Halogen-Free caBGA256IND
    CMXO3L-9400E-5BG400C94001.2V5Halogen-Free caBGA400COM
    CMXO3L-9400E-6BG400C94001.2 V6Halogen-Free caBGA400COM
    CMXO3L-9400E-5BG40094001.2V5Halogen-Free caBGA400IND
    CMXO3L-9400E-6BG40094001.2V6Halogen-Free caBGA400IND
    CMXO3L-9400E-5BG484C94001.2 V5Halogen-Free caBGA484COM
    CMXO3L-9400E-6BG484C94001.2 V6Halogen-Free caBGA484COM
    LCMXO3L-9400E-5BG484I94001.2V5Halogen-Free caBGA484IND
    LCMXO3L-9400E-6BG484I94001.2 V6Halogen-Free caBGA484IND
    LCMXO3L-9400C-5BG256C94002.5V/3.3V5Halo en-Free caBGA256COM
    CMXO3L-9400C-6BG256C9402.5V/3.3V6Halogen-Free caBGA256COM
    LCMXO3L-9400C-5BG256I94002.5V/3.3 V5Halogen-Free caBGA256IND
    LCMXO3L-9400C-6BG25694002.5V/3.3V6Halogen-Free caBGA256IND
    CMXO3L-9400C-5BG400C94002.5V/3.3V5Halogen-Free caBGA400COM
    CMXO3L-9400C-6BG400C94002.5V/3.3 V6Halogen-Free caBGA400COM

    Part NumberLUTsSupply VoltageSpeedPackareLeadsTemp.
    LCMXO3L-9400C-5BG40094002.5V/3.3V5Halogen-Free caBGA400IND
    LCMXO3L-9400C-6BG40094002.5V/3.3V6Halogen-Free caBGA400ND
    LCMXO3L-9400C-5BG484C04002.5V/3.3V5Halogen-Free caBGA484COM
    LCMXO3L-9400C-6BG484C94002.5V/3.3V6Halogen-Free caBGA484COM
    CMXO3L-9400C-5BG484I94002.5V/3.3V5Halogen-Free caBGA484IND
    LCMXO3L-9400C-6BG484I94002.5V/3.3 V6Halogen-Free caBGA484IND

    Part Number LUTsSupply VoltageSpeedPackageLeadsTemp
    LCMXO3LF-640E-5TG100C 6401.2V5Halogen-Free TQFP100COM
    LCMXO3LF-640E-6TG100C 6401.2V6Halogen-Free TQFP100COM
    LCMXO3LF-640E-5TG100I 6401.2V5Halogen-Free TQFP100IND
    LCMXO3LF-640E-6TG100I 6401.2V6Halogen-Free TQFP100IND
    LCMXO3LF-640E-5MG121C 6401.2V5Halogen-Free csfBGA121COM
    LCMXO3LF-640E-6MG121C 6401.2V6Halogen-Free csfBGA121COM
    CMXO3LF-640E-5MG1211 6401.2V5Halogen-Free csfBGA121IND
    LCMXO3LF-640E-6MG1211 6401.2V6Halogen-Free csfBGA121IND
    LCMXO3LF-640E-5MG132C 6401.2V5Halogen-Free csBGA132COM
    LCMXO3LF-640E-6MG132C 6401.2V6Halogen-Free csBGA132COM
    LCMXO3LF-640E-5MG1321 6401.2V5Halogen-Free csBGA132ND
    LCMXO3LF-640E-6MG1321 6401.2V6Halogen-Free csBGA132IND

    Part NumberLUTsSupply VoltageSpeedPackageLeadsTemp.
    LCMXO3LF-1300E-5UWG36CTR13001.2V5Halogen-Free WLCSP36COM
    LCMXO3LF-1300E-5UWG36CTR5013001.2V5Halogen-Free WLCSP36COM
    LCMXO3LF-1300E-5UWG36CTR1K13001.2V5Halogen-Free WLCSP36COM
    LCMXO3LF-1300E-5UWG36ITR13001.2V5Halogen-Free WLCSP36IND
    LCMXO3LF-1300E-5UWG36ITR5013001.2V5Halogen-Free WLCSP36IND
    LCMXO3LF-1300E-5UWG36ITR1K13001.2V5Halogen-Free WLCSP36IND
    LCMXO3LF-1300E-5TG100C13001.2V5Halogen-Free TQFP100COM
    LCMXO3LF-1300E-6TG100C13001.2V6Halogen-Free TQFP100COM
    LCMXO3LF-1300E-5TG100I13001.2 V5Halogen-Free TQFP100IND
    LCMXO3LF-1300E-6TG100I13001.2V6Halogen-Free TQFP100IND
    LCMXO3LF-1300E-5MG121C13001.2V5Halogen-Free csfBGA121COM
    LCMXO3LF-1300E-6MG121C13001.2 V6Halogen-Free csfBGA121COM
    LCMXO3LF-1300E-5MG121113001.2V5Halogen-Free csfBGA121IND
    LCMXO3LF-1300E-6MG121113001.2V6Halogen-Free csfBGA121IND
    LCMXO3LF-1300E-5MG132C13001.2V5Halogen-Free csBGA132COM
    LCMXO3LF-1300E-6MG132C13001.2 V6Halogen-Free csBGA132COM
    LCMXO3LF-1300E-5MG132I13001.2V5Halogen-Free csBGA132IND
    LCMXO3LF-1300E-6MG132I13001.2 V6Halogen-Free csBGA132IND
    LCMXO3LF-1300E-5MG256C13001.2V5Halogen-Free csfBGA256COM
    LCMXO3LF-1300E-6MG256C13001.2V6Halogen-Free csfBGA256COM
    LCMXO3LF-1300E-5MG256I13001.2V5Halogen-Free csfBGA256IND
    LCMXO3LF-1300E-6MG256I13001.2V6Halogen-Free csfBGA256IND

    Part NumberLUTsSupply VoltageSpeedPackageLeadsTemp
    LCMXO3LF-1300C-5TG100C13002.5V/3.3V5Halogen-Free TQFP100COM
    LCMXO3LF-1300C-6TG100C13002.5V/3.3 V6Halogen-Free TQFP100COM
    LCMXO3LF-1300C-5TG100I13002.5V/3.3 V5Halogen-Free TQFP100IND
    CMXO3LF-1300C-6TG100I13002.5V/3.3 V6Halogen-Free TQFP100IND
    CMXO3LF-1300C-5MG132C13002.5V/3.3 V5Halogen-Free csBGA132COM
    CMXO3LF-1300C-6MG132C13002.5V/3.3 V6Halogen-Free csBGA132COM
    LCMXO3LF-1300C-5MG132I13002.5V/3.3 V5Halogen-Free csBGA132IND
    LCMXO3LF-1300C-6MG13213002.5V/3.3 V6Halogen-Free csBGA132IND
    CMXO3LF-1300C-5BG256C13002.5V/3.3 V5Halogen-Free caBGA256CO
    CMXO3LF-1300C-6BG256C13002.5V/3.3 V6Halogen-Free caBGA256COM
    LCMXO3LF-1300C-5BG25613002.5V/3.3V5Halogen-Free caBGA256IND
    LCMXO3LF-1300C-6BG256I13002.5V/3.3V6Halogen-Free caBGA256IND

    Part NumberLUTsSupply VoltageSpeedPackagLeadsTemp
    CMXO3LF-2100E-5UWG49CTR21001.2 V5Halogen-Free WLCSP49COM
    CMXO3LF-2100E-5UWG49CTR5021001.2V5Halogen-Free WLCSP49COM
    CMXO3LF-2100E-5UWG49CTR1K21001.2 V5Halogen-Free WLCSP49COM
    CMXO3LF-2100E-5UWG49ITR21001.2V5Halogen-Free WLCSP49IND
    CMXO3LF-2100E-5UWG49ITR5021001.2 V5Halogen-Free WLCSP49IND
    CMXO3LF-2100E-5UWG49ITR1K21001.2V5Halogen-Free WLCSP49IND
    LCMXO3LF-2100E-5TG100C21001.2 V5Halogen-Free TQFP100COM
    LCMXO3LF-2100E-6TG100C21001.2V6Halogen-Free TQFP100COM
    LCMXO3LF-2100E-5TG100I21001.2V5Halogen-Free TQFP100IND
    LCMXO3LF-2100E-6TG100I21001.2V6Halogen-Free TQFP100IND
    LCMXO3LF-2100E-5MG121C21001.2V5Halogen-Free csfBGA121COM
    CMXO3LF-2100E-6MG121C21001.2 V6Halogen-Free csfBGA121COM
    LCMXO3LF-2100E-5MG12112101.2 V5Halogen-Free csfBGA121IND
    LCMXO3LF-2100E-6MG121I21001.2V6Halogen-Free csfBGA121IND
    LCMXO3LF-2100E-5MG132C21001.2 V5Halogen-Free csBGA132COM
    CMXO3LF-2100E-6MG132C21001.2V6Halogen-Free csBGA132COM
    LCMXO3LF-2100E-5MG132121001.2V5Halogen-Free csBGA132IND
    LCMXO3LF-2100E-6MG132121001.2 V6Halogen-Free csBGA132IND
    CMXO3LF-2100E-5MG256C21001.2 V5Halogen-Free csfBGA256COM
    CMXO3LF-2100E-6MG256C21001.2V6Halogen-Free csfBGA256COM
    LCMXO3LF-2100E-5MG256I21001.2V5Halogen-Free csfBGA256IND
    LCMXO3LF-2100E-6MG25621001.2V6Halogen-Free csfBGA256IND
    CMXO3LF-2100E-5MG324C21001.2 V5Halogen-Free csfBGA324COM
    CMXO3LF-2100E-6MG324C21001.2 V6Halogen-Free csfBGA324COM
    LCMXO3LF-2100E-5MG324I21001.2 V5Halogen-Free csfBGA324IND
    LCMXO3LF-2100E-6MG324I21001.2V6Halogen-Free csfBGA324IND
    LCMXO3LF-2100C-5TG100C21002.5V/3.3 V5Halogen-Free TOFP100COM
    LCMXO3LF-2100C-6TG100C21002.5V/3.3V6Halogen-Free TQFP100COM
    CMXO3LF-2100C-5TG100I21002.5V/3.3V5Halogen-Free TQFP100IND
    LCMXO3LF-2100C-6TG100I21002.5V/3.3 V6Halogen-Free TQFP100IND
    CMXO3LF-2100C-5MG132C21002.5V/3.3 V5Halogen-Free csBGA100COM
    CMXO3LF-2100C-6MG132C21002.5V/3.3V6Halogen-Free csBGA100COM
    LCMXO3LF-2100C-5MG132121002.5V/3.3 V5Halogen-Free csBGA100IND
    LCMXO3LF-2100C-6MG132I21002.5V/3.3V6Halogen-Free csBGA100IND

    Part NumberLUTsSupply Voltage5pgedPackageLeadsTemp.
    LCMXO3LF-2100C-5BG256C21002.5V/3.3V5Halogen-Free caBGA256COM
    LCMXO3LF-2100C-6BG256C21002.5V/3.3V6Halogen-Free caBGA256COM
    LCMXO3LF-2100C-5BG256I21002.5V/3.3V5Halogen-Free caBGA256ND
    LCMXO3LF-2100C-6BG256I21002.5V/3.3 V6Halogen-Free caBGA256ND
    LCMXO3LF-2100C-5BG324C21002.5V/3.3V5Halogen-Free caBGA324COM
    CMXO3LF-2100C-6BG324C21002.5V/3.3V6Halogen-Free caBGA324COM
    LCMXO3LF-2100C-5BG324121002.5V/3.3V5Halogen-Free caBGA324ND
    LCMXO3LF-2100C-6BG324121002.5V/3.3V6Halogen-Free caBGA324IND

    Part NumberLUTsSupply VoltageSpeegPackageLeadsTemp.
    CMXO3LF-4300E-5UWG81CTR43001.2V5Halogen-Free WLCSP81COM
    LCMXO3LF-4300E-5UWG81CTR5043001.2 V5Halogen-Free WLCSP81COM
    LCMXO3LF-4300E-5UWG81CTR1K43001.2 V5Halogen-Free WLCSP81COM
    LCMXO3LF-4300E-5UWG81ITR43001.2 V5Halogen-Free WLCSP81IND
    LCMXO3LF-4300E-5UWG81ITR5043001.2V5Halogen-Free WLCSP81ND
    LCMXO3LF-4300E-5UWG81ITR1K43001.2 V5Halogen-Free WLCSP81ND
    LCMXO3LF-4300E-5MG121C43001.2 V5Halogen-Free csfBGA121COM
    LCMXO3LF-4300E-6MG121C43001.2 V6Halogen-Free csfBGA121COM
    CMXO3LF-4300E-5MG121I43001.2 V5Halogen-Free csfBGA121ND
    LCMXO3LF-4300E-6MG121143001.2V6Halogen-Free csfBGA121IND
    LCMXO3LF-4300E-5MG132C43001.2 V5Halogen-Free csBGA132COM
    LCMXO3LF-4300E-6MG132C43001.2 V6Halogen-Free csBGA132COM
    LCMXO3LF-4300E-5MG132I43001.2 V5Halogen-Free csBGA132ND
    LCMXO3LF-4300E-6MG132I43001.2 V6Halogen-Free csBGA132ND
    CMXO3LF-4300E-5MG256C43001.2 V5Halogen-Free csfBGA256COM
    LCMXO3LF-4300E-6MG256C43001.2V6Halogen-Free csfBGA256COM
    LCMXO3LF-4300E-5MG256I43001.2 V5Halogen-Free csfBGA256ND
    LCMXO3LF-4300E-6MG256I43001.2 V6Halogen-Free csfBGA256ND
    LCMXO3LF-4300E-5MG324C43001.2 V5Halogen-Free csfBGA324COM
    LCMXO3LF-4300E-6MG324C43001.2 V6Halogen-Free csfBGA324COM
    LCMXO3LF-4300E-5MG324I43001.2 V5Halogen-Free csfBGA324ND
    LCMXO3LF-4300E-6MG324I43001.2V6Halogen-Free csfBGA324IND
    LCMXO3LF-4300C-5MG132C43002.5V/3.3V5Halogen-Free csBGA132COM
    LCMXO3LF-4300C-6MG132C43002.5V/3.3V6Halogen-Free csBGA132COM
    LCMXO3LF-4300C-5MG132143002.5V/3.3V5Halogen-Free csBGA132ND
    LCMXO3LF-4300C-6MG132143002.5V/3.3 V6Halogen-Free csBGA132ND
    LCMXO3LF-4300C-5BG256C43002.5V/3.3V5Halogen-Free caBGA256COM
    LCMXO3LF-4300C-6BG256C43002.5V/3.3V6Halogen-Free caBGA256COM
    LCMXO3LF-4300C-5BG256I43002.5V/3.3V5Halogen-Free caBGA256IND
    LCMXO3LF-4300C-6BG256I43002.5V/3.3V6Halogen-Free caBGA256ND
    LCMXO3LF-4300C-5BG324C43002.5V/3.3V5Halogen-Free caBGA324COM
    LCMXO3LF-4300C-6BG324C43002.5V/3.3 V6Halogen-Free caBGA324COM
    LCMXO3LF-4300C-5BG324143002.5V/3.3V5Halogen-Free caBGA324ND
    CMXO3LF-4300C-68G324I43002.5V/3.3V6Halogen-Free caBGA324IND
    LCMXO3LF-4300C-5BG400C43002.5V/3.3V5Halogen-Free caBGA400COM
    LCMXO3LF-4300C-6BG400C43002.5V/3.3V6Halogen-Free caBGA400COM
    LCMXO3LF-4300C-5BG400I43002.5V/3.3V5Halogen-Free caBGA400IND
    LCMXO3LF-4300C-6BG400I43002.5V/3.3 V6Halogen-Free caBGA400ND

    Part NumberLUTsSupply VoltageSpeedPackageLeadsTemp
    CMXO3LF-6900E-5MG256C6901.2 V5Halogen-Free csfBGA256COM
    CMXO3LF-6900E-6MG256C69001.2 V6Halogen-Free csfBGA256COM
    LCMXO3LF-6900E-5MG256I69001.2V5Halogen-Free csfBGA256IND
    LCMXO3LF-6900E-6MG256I69001.2 V6Halogen-Free csfBGA256IND
    CMXO3LF-6900E-5MG324C69001.2 V5Halogen-Free csfBGA324COM
    CMXO3LF-6900E-6MG324C69001.2 V6Halogen-Free csfBGA324COM
    LCMXO3LF-6900E-5MG324I69001.2 V5Halogen-Free csfBGA324IND
    LCMXO3LF-6900E-6MG324I6901.2V6Halogen-Free csfBGA324IND
    CMXO3LF-6900C-5BG256C6902.5V/3.3 V5Halogen-Free caBGA256COM
    CMXO3LF-6900C-6BG256C69002.5V/3.3V6Halogen-Free caBGA256COM
    LCMXO3LF-6900C-5BG256I6902.5V/3.3 V5Halogen-Free caBGA256IND
    LCMXO3LF-6900C-6BG25669002.5V/3.3V6Halogen-Free caBGA256IND
    CMXO3LF-6900C-5BG324C69002.5V/3.3 V5Halogen-Free caBGA324COM
    CMXO3LF-6900C-6BG324C6902.5V/3.3 V6Halogen-Free caBGA324COM
    LCMXO3LF-6900C-58G32469002.5V/3.3V5Halogen-Free caBGA324IND
    CMXO3LF-6900C-6BG324I6902.5V/3.3 V6Halogen-Free caBGA324IND
    LCMXO3LF-6900C-5BG400C6902.5V/3.3V5Halogen-Free caBGA400COM
    LCMXO3LF-6900C-6BG400C6902.5V/3.3 V6Halogen-Free caBGA400COM
    LCMXO3LF-6900C-5BG40069002.5V/3.3 V5Halogen-Free caBGA400IND
    LCMXO3LF-6900C-6BG4006902.5V/3.3 V6Halogen-Free caBGA400IND

    Part NumbeLUTsSupply VoltageSpeedPackageLeadsTemp
    CMXO3LF-9400E-5MG256C94001.2 V5Halogen-Free csfBGA256COM
    CMXO3LF-9400E-6MG256C94001.2 V6Halogen-Free csfBGA256COM
    LCMXO3LF-9400E-5MG256I9401.2 V5Halogen-Free csfBGA256IND
    LCMXO3LF-9400E-6MG256I9401.2 V6Halogen-Free csfBGA256IND
    CMXO3LF-9400E-5BG256C94001.2V5Halogen-Free caBGA256COM
    CMXO3LF-9400E-6BG256C94001.2V6Halogen-Free caBGA256COM
    LCMXO3LF-9400E-5BG256I94001.2V5Halogen-Free caBGA256IND
    LCMXO3LF-9400E-6BG256I94001.2 V6Halogen-Free caBGA256IND
    CMXO3LF-9400E-5BG400C94001.2 V5Halogen-Free caBGA400COM
    CMXO3LF-9400E-6BG400C94001.2V6Halogen-Free caBGA400COM
    CMXO3LF-9400E-5BG40094001.2 V5Halogen-Free caBGA400ND
    CMXO3LF-9400E-6BG40094001.2V6Halogen-Free caBGA400IND
    CMXO3LF-9400E-5BG484C94001.2 V5Halogen-Free caBGA484COM
    CMXO3LF-9400E-6BG484C94001.2V6Halogen-Free caBGA484COM
    CMXO3LF-9400E-5BG484I94001.2V5Halogen-Free caBGA484IND
    LCMXO3LF-9400E-6BG484I9401.2 V6Halogen-Free caBGA484IND
    CMXO3LF-9400C-5BG256C94002.5V/3.3V5Halogen-Free caBGA256COM
    CMXO3LF-9400C-6BG256C9402.5V/3.3 V6Halogen-Free caBGA256COM
    CMXO3LF-9400C-5BG256I94002.5V/3.3 V5Halogen-Free caBGA256IND
    LCMXO3LF-9400C-6BG256I94002.5V/3.3 V6Halogen-Free caBGA256IND
    LCMXO3LF-9400C-5BG400C94002.5V/3.3 V5Halogen-Free caBGA400COM
    CMXO3LF-9400C-6BG400C9402.5V/3.3V6Halogen-Free caBGA400COM
    LCMXO3LF-9400C-5BG40094002.5V/3.3 V5Halogen-Free caBGA400IND
    CMXO3LF-9400C-6BG40094002.5V/3.3 V6Halogen-Free caBGA400IND
    CMXO3LF-9400C-5BG484C94002.5V/3.3V5Halogen-Free caBGA484COM
    CMXO3LF-9400C-6BG484C9402.5V/3.3 V6Halogen-Free caBGA484COM

    Part NumbeLUTsSupply VoltageSpeedPackageLeadsTemp
    LCMXO3LF-9400C-5BG484I94002.5V/3.3V5Halogen-Free caBGA484IND
    LCMXO3LF-9400C-68G484I94002.5 V/3.3 V6Halogen-Free caBGA484IND
    6.3. MachXO3LF Ultra Low Power Automotive Grade Devices,Halogen Free
      (RoHS)Packaging
    Part Number LUTsSupply Voltage5peedPackageLeadsTemp
    LAMXO3LF-640E-5TG100E 6401.25Halogen-Free TQFP100AUTO
    LAMXO3LF-640E-5MG132E 6401.25Halogen-Free csBGA132AUTO
    LAMXO3LF-1300E-5TG100E 13001.25Halogen-Free TOFP100AUTO
    LAMXO3LF-1300C-5TG100E 13003.35Halogen-Free TQFP100AUTO
    LAMXO3LF-1300E-5MG132E 13001.25Halogen-Free csBGA132AUTO
    LAMXO3LF-1300C-5MG132E 13003.35Halogen-Free csBGA132AUTO
    LAMXO3LF-1300E-5BG256E 13001.25Halogen-Free caBGA256AUTO
    LAMXO3LF-1300C-58G256E 13003.35Halogen-Free caBGA256AUTO
    LAMXO3LF-2100E-5TG100E 21001.25Halogen-Free TQFP100AUTO
    LAMXO3LF-2100C-5TG100E 21003.35Halogen-Free TOFP100AUTO
    LAMXO3LF-2100E-5MG132E 21001.25Halogen-Free csBGA132AUTO
    LAMXO3LF-2100C-5MG132E 21003.35Halogen-Free csBGA132AUTO
    LAMXO3LF-2100E-5BG256E 21001.25Halogen-Free caBGA256AUTO
    LAMXO3LF-2100C-5BG256E 21003.35Halogen-Free caBGA256AUTO
    LAMXO3LF-2100E-58G324E 21001.25Halogen-Free caBGA324AUTO
    LAMXO3LF-2100C-58G324E 21003.35Halogen-Free caBGA324AUTO
    LAMXO3LF-4300E-5MG132E 43001.25Halogen-Free csBGA132AUTO
    LAMXO3LF-4300C-5MG132E 43003.35Halogen-Free csBGA132AUTO
    LAMXO3LF-4300E-5BG256E 43001.25Halogen-Free caBGA256AUTO
    LAMXO3LF-4300C-58G256E 43003.35Halogen-Free caBGA256AUTO
    LAMXO3LF-4300E-58G324E 43001.25Halogen-Free caBGA324AUTO
    LAMXO3LF-4300C-58G324E 43003.35Halogen-Free caBGA324AUTO


    示例解决方案


    控制PLD

    • 非易失性PLD（640至9400 LUT和28至384 I/O）在服务器、通信盒和工业控制器中提供最广泛的应用覆盖。

    • 通过将硬件管理功能（如电源热管理和控制PLD）集成到MachXO3和L-ASC10中，降低成本和BOM。

    • 在系统内添加功能并修复错误，而不会通过无中断 I/O 中断系统运行。

    • 通过使用 Reveal 进行片上调试，更快地完成电路板调试。


    带MachXO3的电机控制接口

    • 灵活地与工业、汽车和其他嵌入式系统中使用的各种电机连接

    • IGBT?；ず蚐PI接口允许向MCU提供实时反馈

    • 灵活地支持不同的通信标准，功耗低，响应速度快

    • 占地面积小，适合空间受限的应用


    使用MachXO3进行电池管理控制

    • MachXO3为移动和便携式嵌入式系统的电池管理提供控制器

    • 智能电池平衡，用于每个电池单元的电荷均衡。

    • 控制充电/放电过程并接收实时电池信息，如充电状态 （SOC） 和健康状态 （SOH）


    微处理器接口扩展

    • 通过向低成本微控制器添加GPIO来节省成本

    • 为系统控制处理器添加额外的 SPI 和 I2C 接口

    • 轻松执行电压电平转换

    • 通过PLD实现系统状态寄存器简化系统管理


    CSI-2 图像传感器接口

    • 支持 CSI-2 高速差分信号

      • Rx 和 Tx 接口

    • 从 1-4 个 CSI-2 通道，速率高达 900 Mbps

    • 可在 49 wlcsp （3.2 x 3.2 mm） 中实现

    • 支持 RAW、YUV 或 RGB


    DSI LCD显示器接口

    • 支持 DSI 发送信令

      • HS（高速）模式传输

      • LP（低功耗）模式发送和接收

    • 可在 49 wlcsp （3.2 x 3.2 mm） 中实现

    • 支持 DSI 格式 RGB、YCbCr 和用户定义

    • 输入总线也可以是 DSI，以启用 LCD 屏幕更换


    上一个: FPGA现场可编程门阵列LCMXO3D-9400ZC-2BG256C

    下一个: 电源控制器和监视器L-ASC10-1SG48I

    推荐产品

    在线留言

    在线留言

     国产成人无码网站 <蜘蛛词>| <蜘蛛词>| <蜘蛛词>| <蜘蛛词>| <蜘蛛词>| <蜘蛛词>| <蜘蛛词>| <蜘蛛词>| <蜘蛛词>| <蜘蛛词>| <蜘蛛词>| <蜘蛛词>| <蜘蛛词>| <蜘蛛词>| <蜘蛛词>| <蜘蛛词>| <蜘蛛词>| <蜘蛛词>| <蜘蛛词>| <蜘蛛词>| <蜘蛛词>| <蜘蛛词>| <蜘蛛词>| <蜘蛛词>| <蜘蛛词>| <蜘蛛词>| <蜘蛛词>| <蜘蛛词>| <蜘蛛词>| <蜘蛛词>| <蜘蛛词>| <蜘蛛词>| <蜘蛛词>| <蜘蛛词>| <蜘蛛词>| <蜘蛛词>| <蜘蛛词>| <蜘蛛词>| <蜘蛛词>| <蜘蛛词>| <蜘蛛词>| <文本链> <文本链> <文本链> <文本链> <文本链> <文本链>
