    CPLD复杂可编程逻辑器件LCMXO2280C-3MN132C

    发布于：2023-11-07 17:24:02

    品牌名称：Lattice

    重要参数：

    型号：MachXO系列

    I/O: 101pins

    电源电压：1.8|2.5|3.3V

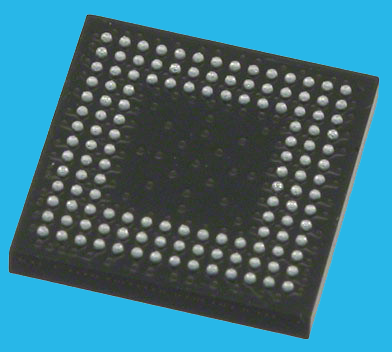

    封装：CSBGA-132pin


    • 产品详情

    MachXO系列：

    MachXO经过优化，可满足传统上由cpld和低容量fpga解决的应用需求:粘合逻辑、总线桥接、总线接口、上电控制和控制逻辑。这些器件在单个芯片上汇集了CPLD和FPGA器件的最佳特性。

    MachXO系列选型指南

    DeviceLCMXO256LCMXO640LCMXO1200LCMXO2280
    LUTs25664012002280
    Dist.RAM (Kbits2.06.16.47.7
    EBR SRAM (Kbits009.227.6
    Number of EBR SRAM Blocks (9 Kbits0013
    Voc Voltage1.2/1.8/2.5/3.3V1.2/1.8/2.5/3.3 V1.2/1.8/2.5/3.3V1.2/1.8/2.5/3.3V
    Number of PLLs0012
    Max.I/078159211271
    Packages
    100-pin TQFP (14x14 mm78747373
    144-pin TQFP (20x20 mm)
    		113113113
    100-ball csBGA (8x8 mm)7874

    132-ball csBGA (8x8 mm
    		101101101
    256-ball caBGA (14x14 mm
    		159211211
    256-ball ftBGA (17x17 mm)
    		159211211
    324-ball ftBGA (19x19 mm)


    		271


    订购信息：

    Part NumberLUTsSupply Voltagel/OsGradePackagePinsTemp
    LCMXO256C-3T10012561.8V/2.5V/3.3V78-3TOFP100IND
    LCMXO256C-4T10012561.8V/2.5V/3.3 V78-4TQFP100IND
    LCMXO256C-3M1002561.8V/2.5V/3.3V78-3CSBGA100IND
    LCMXO256C-4M1002561.8V/2.5V/3.3V78-4CsBGA100IND
    LCMXO640C-3T10016401.8V/2.5V/3.3V74-3TQFP100IND
    LCMXO640C-4T10016401.8V/2.5V/3.3V74-4TQFP100IND
    LCMXO640C-3M1006401.8V/2.5V/3.3V74-3CSBGA100IND
    LCMXO640C-4M1006401.8V/2.5V/3.3V74-4CsBGA100IND
    LCMXO640C-3T14416401.8V/2.5V/3.3 V113-3TQFP144IND
    LCMXO640C-4T14416401.8V/2.5V/3.3 V113-4TQFP144IND
    LCMXO640C-3M1326401.8V/2.5V/3.3V101-3CSBGA132IND
    LCMXO640C-4M1326401.8V/2.5V/3.3V101-4CsBGA132IND
    LCMXO640C-38256I6401.8V/2.5V/3.3V159-3caBGA256IND
    LCMXO640C-48256I6401.8V/2.5V/3.3V159-4caBGA256IND
    LCMX0640C-3FT2566401.8V/2.5V/3.3V159-3ftBGA256ND
    LCMXO640C-4FT2566401.8V/2.5V/3.3V159-4ftBGA256IND
    LCMXO1200C-3T100112001.8V/2.5V/3.3V73-3TOFP100IND
    LCMXO1200C-4T100112001.8V/2.5V/3.3 V73-4TQFP100IND
    LCMXO1200C-3T144I12001.8V/2.5V/3.3V113-3TQFP144IND
    LCMXO1200C-4T144112001.8V/2.5V/3.3 V113-4TQFP144IND
    LCMXO1200C-3M13212001.8V/2.5V/3.3V101-3CSBGA132IND
    LCMXO1200C-4M13212001.8V/2.5V/3.3 V101-4CSBGA132IND
    LCMXO1200C-3B256I12001.8V/2.5V/3.3V211-3caBGA256IND
    Part Number LUTsSupply Voltagel/OsGradePackage PinsTemp
    LCMXO1200C-4B256I 12001.8V/2.5V/3.3V211-4caBGA 256IND
    LCMXO1200C-3FT256 12001.8V/2.5V/3.3V2113ftBGA 256IND
    LCMXO1200C-4FT256I 12001.8V/2.5V/3.3V211-4ftBGA 256IND
    LCMXO2280C-3T100 22801.8V/2.5V/3.3V733TQFP 100IND
    LCMXO2280C-4T100 22801.8V/2.5V/3.3V73-4TQFP 100IND
    LCMXO2280C-3T1441 22801.8V/2.5V/3.3V113-3TQFP 144IND
    LCMXO2280C-4T1441 22801.8V/2.5V/3.3V113-4TQFP 144IND
    LCMXO2280C-3M1321 22801.8V/2.5V/3.3V101-3CsBGA 132IND
    LCMXO2280C-4M1321 22801.8V/2.5V/3.3V101-4csBGA 132IND
    LCMXO2280C-38256I 22801.8V/2.5V/3.3V2113caBGA 256IND
    LCMXO2280C-48256I 22801.8V/2.5V/3.3V211-4caBGA 256IND
    LCMXO2280C-3FT256I 22801.8V/2.5V/3.3V2113ftBGA 256IND
    LCMXO2280C-4FT2561 22801.8V/2.5v/3.3V2114ftBGA 256IND
    LCMXO2280C-3FT324I 22801.8V/2.5V/3.3V2713ftBGA 324IND
    LCMXO2280C-4FT324I 22801.8V/2.5V/3.3V271-4ftBGA 324IND
    LCMXO256E-3T100I 2561.2V783TOFP 100IND
    LCMXO256E-4T100I 2561.2 V78-4TQFP 100IND
    LCMXO256E-3M100I 2561.2V783csBGA 100IND
    LCMXO256E-4M100I 2561.2 V784csBGA 100IND
    LCMXO640E-3T100I 6401.2 V743TOFP 100IND
    LCMXO640E-4T100 6401.2V74-4TQFP 100IND
    LCMXO640E-3M100I 6401.2 V743csBGA 100IND
    LCMXO640E-4M100I 6401.2V74-4csBGA 100IND
    LCMXO640E-3T144I 6401.2 V1133TQFP 144IND
    LCMXO640E-4T144I 6401.2 V1134TQFP 144IND
    LCMXO640E-3M1321 6401.2V101-3csBGA 132IND
    LCMXO640E-4M1321 6401.2V101-4csBGA 132IND
    LCMXO640E-3B256I 6401.2 V1593caBGA 256IND
    LCMXO640E-4B256I 6401.2V159-4caBGA 256IND
    LCMXO640E-3FT256I 6401.2V1593ftBGA 256IND
    LCMXO640E-4FT256I 6401.2 V1594ftBGA 256IND
    LCMXO1200E-3T100I 12001.2V73-3TQFP 100IND
    LCMXO1200E-4T100I 12001.2V73-4TOFP 100IND
    LCMXO1200E-3T144I 12001.2 V113-3TQFP 144IND
    LCMXO1200E-4T144I 12001.2V113-4TQFP 144IND
    LCMXO1200E-3M13.21 12001.2 V1013csBGA 132IND
    LCMXO1200E-4M13.21 12001.2 V101-4csBGA 132IND
    LCMXO1200E-3B256I 12001.2V2113caBGA 256IND
    LCMXO1200E-4B256I 12001.2 V211-4caBGA 256IND
    LCMXO1200E-3FT256I 12001.2V211-3ftBGA 256IND
    LCMXO1200E-4FT256 12001.2 V211-4ftBGA 256IND
    LCMXO2280E-3T100I 22801.2 V73-3TQFP 100IND
    LCMXO2280E-4T100I 22801.2V73-4TQFP 100IND
    LCMXO2280E-3T1441 22801.2 V1133TQFP 144IND
    LCMXO2280E-4T1441 22801.2 V113-4TQFP 144IND
    LCMXO2280E-3M13.21 22801.2 V1013csBGA 132IND
    LCMXO2280E-4M13.21 22801.2V101-4csBGA 132IND
    LCMXO2280E-3B256I 22801.2 V2113caBGA 256IND


    Part Number LUTsSupply Voltagel/OsGradePackagePinsTemp
    LCMXO2280E-4B2561 22801.2V2114caBGA256IND
    LCMXO2280E-3FT256 22801.2V2113ftBGA256IND
    LCMXO2280E-4FT256 22801.2V2114ftBGA256IND
    LCMXO2280E-3FT324 22801.2V2713ftBGA324IND
    LCMXO2280E-4FT324 22801.2V2714ftBGA324IND


    Part NumberLUTsSupply Voltagel/OsGradePackagePinTemp.
    LCMXO256C-3TN100I2561.8V/2.5V/3.3V78-3Lead-Free TQFP100IND
    LCMXO256C-4TN100I2561.8V/2.5V/3.3V78-4Lead-Free TQFP100IND
    LCMXO256C-3MN100I2561.8V/2.5V/3.3V783ead-Free csBGA100IND
    LCMXO256C-4MN100I2561.8V/2.5V/3.3V78-4ead-Free csBGA100IND
    LCMXO640C-3TN100I6401.8V/2.5V/3.3 V74-3Lead-Free TOFP100IND
    LCMXO640C-4TN100I6401.8V/2.5V/3.3V74-4Lead-Free TQFP100IND
    LCMXO640C-3MN100I6401.8V/2.5V/3.3 V74-3Lead-Free csBGA100IND
    LCMXO640C-4MN100I6401.8V/2.5V/3.3 V74-4Lead-Free csBGA100IND
    LCMXO640C-3TN144I6401.8V/2.5V/3.3 V113-3Lead-Free TOFP144IND
    LCMXO640C-4TN1446401.8V/2.5V/3.3V113-4Lead-Free TQFP144IND
    LCMXO640C-3MN13216401.8V/2.5V/3.3V101-3Lead-Free csBGA132IND
    LCMXO640C-4MN13216401.8V/2.5V/3.3V101-4Lead-Free csBGA132IND
    LCMXO640C-3BN256I6401.8V/2.5V/3.3V159-3Lead-Free caBGA256IND
    LCMXO640C-4BN256I6401.8V/2.5V/3.3V159-4Lead-Free caBGA256IND
    LCMXO640C-3FTN256I6401.8V/2.5V/3.3V159-3Lead-Free ftBGA256ND
    LCMXO640C-4FTN256I6401.8V/2.5V/3.3V1594Lead-Free ftBGA256IND
    LCMXO1200C-3TN10012001.8V/2.5V/3.3 V733Lead-Free TQFP100IND
    LCMXO1200C-4TN100I1201.8V/2.5V/3.3V73-4Lead-Free TQFP100ND
    LCMXO1200C-3TN144I12001.8V/2.5V/3.3 V113-3Lead-Free TQFP144IND
    LCMXO1200C-4TN144I12001.8V/2.5V/3.3 V113-4Lead-Free TQFP144IND
    LCMXO1200C-3MN13211201.8V/2.5V/3.3V101-3Lead-Free csBGA132IND
    LCMXO1200C-4MN13211201.8V/2.5V/3.3 V101-4Lead-Free csBGA132IND
    LCMXO1200C-3BN256I12001.8V/2.5V/3.3V2113Lead-Free caBGA256IND
    LCMXO1200C-4BN256I12001.8V/2.5V/3.3 V211-4Lead-Free caBGA256IND
    LCMXO1200C-3FTN256I12001.8V/2.5V/3.3V2113Lead-Free ftBGA256IND
    LCMXO1200C-4FTN256I12001.8V/2.5V/3.3V211-4Lead-Free ftBGA256IND
    LCMXO2280C-3TN100I22801.8V/2.5V/3.3 V733Lead-Free TOFP100IND
    LCMXO2280C-4TN100I22801.8V/2.5V/3.3V734Lead-Free TQFP100IND
    LCMXO2280C-3TN144I2281.8V/2.5V/3.3V113-3Lead-Free TOFP144IND
    LCMXO2280C-4TN14412281.8V/2.5V/3.3V113-4Lead-Free TQFP144IND
    LCMXO2280C-3MN132122801.8V/2.5V/3.3V101-3Lead-Free csBGA132IND
    LCMXO2280C-4MN1322281.8V/2.5V/3.3V101-4Lead-Free csBGA132IND
    LCMXO2280C-3BN256I2281.8V/2.5V/3.3V211-3Lead-Free caBGA256IND
    LCMXO2280C-4BN256I22801.8V/2.5V/3.3V211-4Lead-Free caBGA256IND
    LCMXO2280C-3FTN256I22801.8V/2.5V/3.3V211-3Lead-Free ftBGA256IND
    LCMXO2280C-4FTN256I22801.8V/2.5V/3.3V211-4Lead-Free ftBGA256IND
    LCMXO2280C-3FTN324122801.8V/2.5V/3.3V271-3Lead-Free ftBGA324IND
    LCMXO2280C-4FTN324122801.8V/2.5V/3.3V2714Lead-Free ftBGA324IND
    LCMXO256E-3TN1002561.2V78-3Lead-Free TOFP100ND
    LCMXO256E-4TN1002561.2V78-4Lead-Free TOFP100ND
    LCMXO256E-3MN100I2561.2V78-3Lead-Free csBGA100ND
    LCMXO256E-4MN100I2561.2V78-4Lead-Free csBGA100ND
    LCMXO640E-3TN1006401.2V74-3Lead-Free TQFP100ND
    LCMXO640E-4TN1006401.2V74-4Lead-Free TOFP100IND
    LCMXO640E-3MN100I6401.2V743Lead-Free csBGA100ND
    LCMXO640E-4MN100I6401.2V74-4Lead-Free csBGA100ND


    Part Number LUTsSupply Voltagel/OsGradePackagePinsTemp
    LCMXO640E-3TN144I 6401.2 V1133ead-Free TOFP144IND
    LCMXO640E-4TN144I 6401.2 V1134Lead-Free TOFP144IND
    LCMXO640E-3MN132I 6401.2V1013ead-Free csBGA132IND
    LCMXO640E-4MN132I 6401.2 V1014ead-Free csBGA132IND
    LCMXO640E-3BN256 6401.2V1593ead-Free caBGA256IND
    LCMXO640E-4BN256 6401.2 V1594Lead-Free caBGA256IND
    LCMXO640E-3FTN256I 6401.2 V159-3Lead-Free ftBGA256IND
    LCMXO640E-4FTN256 6401.2 V1594ead-Free ftBGA256IND
    LCMXO1200E-3TN100 12001.2 V733Lead-Free TOFP100IND
    LCMXO1200E-4TN100 12001.2V734ead-Free TOFP100IND
    LCMXO1200E-3TN144I 12001.2 V1133ead-Free TOFP144IND
    LCMXO1200E-4TN144I 12001.2 V1134ead-Free TOFP144IND
    LCMXO1200E-3MN132 12001.2 V1013ead-Free csBGA132IND
    LCMXO1200E-4MN1321 12001.2 V1014Lead-Free csBGA132IND
    LCMXO1200E-3BN256I 12001.2V2113ead-Free caBGA256IND
    LCMXO1200E-4BN256I 12001.2 V2114ead-Free caBGA256IND
    LCMXO1200E-3FTN256 12001.2V211-3ead-Free ftBGA256IND
    LCMXO1200E-4FTN256 12001.2 V2114ead-Free ftBGA256IND
    LCMXO2280E-3TN100 22801.2V733ead-Free TOFP100IND
    LCMXO2280E-4TN100 2281.2 V734ead-Free TOFP100IND
    LCMXO2280E-3TN144I 22801.2 V1133Lead-Free TOFP144IND
    LCMXO2280E-4TN144I 22801.2V1134ead-Free TOFP144IND
    LCMXO2280E-3MN132 22801.2 V1013Lead-Free csBGA132IND
    LCMXO2280E-4MN132 22801.2 V1014ead-Free csBGA132IND
    LCMXO2280E-3BN256I 22801.2 V2113Lead-Free caBGA256IND
    LCMXO2280E-4BN256I 22801.2V211-4ead-Free caBGA256IND
    LCMXO2280E-3FTN256 22801.2 V2113ead-Free ftBGA256IND
    LCMXO2280E-4FTN256 22801.2 V2114Lead-Free ftBGA256IND
    LCMXO2280E-3FTN324I 22801.2V2713Lead-Free ftBGA324IND
    LCMXO2280E-4FTN324I 22801.2 V271-4Lead-Free ftBGA324IND


    1.1.  特性

    ?非易失性，无限可重构

    ?即时启动-在微秒内启动

    ?单芯片，不需要外部配置内存

    ?出色的设计安全性，无比特流拦截

    ?在毫秒内重新配置基于SRAM的逻辑

    SRAM和非易失性存储器

    通过JTAG端口可编程

    ?支持后台编程的非易失性存储器

    ?睡眠模式

    ?允许高达100倍的静态电流减少

    TransFR?Reconfiguration (TFR)

    ?在系统运行时进行现场逻辑更新

    ?高I/O到逻辑密度

    ?256至2280 lut4

    ?73至271 I/ o与广泛的封装选项

    ?支持密度迁移

    ?无铅/符合RoHS标准的包装

    ?嵌入式和分布式内存

    ?高达27.6 Kbits的systemm?嵌入式块

    内存

    ?高达7.7 Kbits的分布式RAM

    ?专用FIFO控制逻辑

    ?灵活的I/O缓冲

    ?可编程的sysIO?缓冲器支持广泛

    接口范围:

    lvcmos 3.3/2.5/1.8/1.5/1.2

    ?LVTTL

    ?一种总线标准

    LVDS，总线LVDS, LVPECL, RSDS

    ?sysCLOCK?PLLs

    ?每个设备最多两个模拟锁相环

    ?时钟乘法，除法和相移

    ?系统级支持

    IEEE标准1149.1边界扫描

    ?板载振荡器

    ?设备运行3.3 V, 2.5 V, 1.8 V或1.2V电源

    ?符合IEEE 1532的系统编程
