Kulite XCL-072微型無引腳壓力傳感器
發布時間：2024-07-09 09:33:22 瀏覽：1572
Kulite XCL-072微型無引腳壓力傳感器是一款專為在各種環境中進行精確壓力測量而設計的先進設備。以下是該傳感器的詳細介紹：
設計特點
專利無引線技術：XCL-072采用了Kulite的專利無引線技術，這一技術被稱為VIS?(Variable Impedance
Sensor)。這種技術不僅提高了傳感器的耐用性，還使其封裝更加堅固，非常適合集成在探頭、壓力耙等測試裝置中。
應用環境
惡劣環境適應性：該傳感器專為在惡劣環境中使用而設計，能夠在極端條件下保持性能穩定，無論是高溫、高壓還是腐蝕性介質。
動態和靜壓測量：XCL-072不僅適用于靜態壓力測量，還能有效應對動態壓力變化，確保在快速變化的工況下也能提供準確的數據。
兼容性
廣泛的介質兼容性：這款傳感器適用于大多數導電液體和氣體，使其在多種應用場景中都能發揮作用。
典型應用

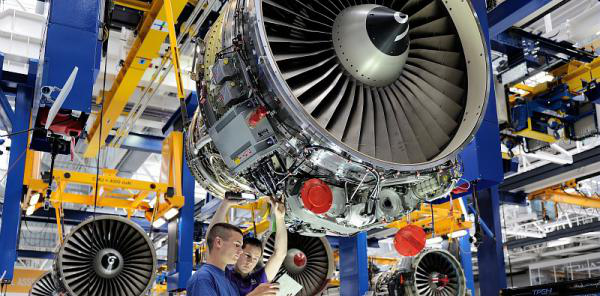

渦輪發動機探頭：在渦輪發動機測試中，XCL-072能夠提供關鍵的壓力數據，幫助工程師優化發動機性能。
風洞應用：在風洞實驗中，該傳感器能夠準確測量氣流壓力，為空氣動力學研究提供重要數據支持。
規格參數：
| INPUT | Pressure Range | 1.0
15 | 1.7 3.5 7
25 50 100 | 14
200 | 21
300 | 35
500 | 70 BAR
1000 PSI |
| Operational Mode | Absolute,Gage
Differential | Absolute,Gage,Sealed Gage,
Differential | Absolute,Sealed Gage |
| Over Pressure | 2 Times Rated Pressure to 500 PSI (35 BAR),1.5 Times Rated Pressure Above 500 PSI (35 BAR) |
| Burst Pressure | 3 Times Rated Pressure |
| Pressure Media | Most Conductive Liquids and Gases-Please Consult Factory |
| Rated Electrical Excitation | 10 VDC/AC |
| Maximum Electrical Excitation | 12 VDC/AC |
| Input Impedance | 1000 Ohms(Min.) |
| OUTPUT | Output Impedance | 1000 Ohms (Nom.) |
| Full Scale Output (FSO) | 100 mV(Nom.) |
| Residual Unbalance | ±5mV(Typ.) |
Combined Non-Linearity,Hysteresis
and Repeatability | ±0.1%FSO BFSL(Typ.),±0.5%FSO (Max.) |
| Resolution | Infinitesimal |
Natural Frequency of Sensor
Without Screen (KHz)(Typ.) | 175 200 240 300 380 550 575 700 1000 |
Acceleration Sensitivity %FS/g
Perpendicular | 1.0x103 6.5x104 5.0x104 3.0x104 1.5x10? 1.1x10 9.0x10 6.0x104 4.0x105 |
| Insulation Resistance | 100 Megohm Min.@50 VDO |
| ENVIRONMENTAL | Operating TemperatureRange | -65°F to+250F(-55°℃ to+120°℃) |
| Compensated Temperature Range | +80°F to +180°F(+25°℃ to +80°℃)Any 100°F Range Within The Operating Range on Request |
| ThermalZero Shift | ±1%FS/100°F (Typ-) |
| ThermalSensitivityShift | ±1%/100°F (Typ.) |
| Mechanical Shock | 20g Half Sine Wave 11 msec.Duration |
| Linear Vibration | 20g Peak,Sine 10 to 2000 Hz |

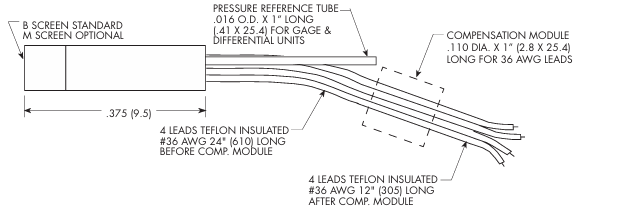

| PHYSICAL | Electrical Connection | 4 Leads 36 AWG 36"Long |
| Weight | .2 Gram (Nom.)Excluding Module and Leads |
| Pressure Sensing Principle | Fully Active Four Arm Wheatstone Bridge Dielectrically lsolated Siicon on Silicon Patented Leadless Technology |
Kulite是一家成立于1959年的美國傳感器技術公司，專注于為航空航天、石油化工、汽車制造和軍事裝備等行業提供高質量的傳感器解決方案。其產品線包括壓力、加速度、溫度和流量傳感器，設計用于極端環境，確保高精度和可靠性。深圳市立維創展科技有限公司是Kulite產品的授權代理商，提供咨詢和銷售服務。
