- 产品详情
与PMT对比
SiPM有低电压操作、对磁场不敏感等优点，功耗更低、光子检测效率更高且离散可分离。
产品特性
有独特集成方案，灵活性大，功能多样从计数器到光谱学，?？榛峁箍稍黾庸δ?。
性能水平广，能调整SiPM数量和布局优化性能，有多种模拟输出选项。
坚固，符合标准，有标准配置，不同探测器切换到SiPM可减重、延长电池寿命。
型号规格
| Scintillator size 2" x 2" | Length saved | Volume gained |
| Nal(TI) or NaIL | 2.73” (69.3 mm) | 12.2 cu inch (200 ccm) |
| CLLB, LaBr3 or Enhanced LaBr3 | 2.47” (62.8 mm) | 11.3 cu inch (185 ccm) |
| Scintillator size 2" x 4" x 4" | ||
| Nal(TI) or NaIL | 4.423" (112.344 mm) | 45 cu inch (737ccm) |
带 SiPM 的 Nal(TI) 探测器
| Model | Scintillator Dimensions | Electronics | PHR Specifications | Part Number |
| for Cs-137 End-on | ||||
| Si38.1NI38.1D80 | 1.5" diameter x 1.5" | I to V Positive | ≤ 8% | 690-1113 |
| Si38.1NI38.1B80 | 1.5" diameter x 1.5" | Charge Sensitive Positive | ≤ 8% | 690-1119 |
| Si50.8NI50.8D75 | 2" diameter x 2" | I to V Positive | ≤ 7.5% | 690-1100-16-00 |
| Si50.8NI50.8B75 | 2" diameter x 2" | Charge Sensitive Positive | ≤ 7.5% | 690-1065-16-00 |
| Si76.2NI76.2D85 | 3" diameter x 3" | I to V Positive | ≤ 8.5% | 690-1105 |
| Si76.2NI76.2B85 | 3" diameter x 3" | Charge Sensitive Positive | ≤ 8.5% | 690-1096 |
| USB OUTPUT ADAPTER, SiPM ANALOG | 690-1071 | |||
带 SiPM 的 NalL 探测器
| Model | Scintillator Dimensions | Electronics | PHR Specifications | Sales Drawing |
| for Cs-137 End-on | ||||
| Si50.8NL50.8D75 | 2" diameter x 2" | I to V Positive | ≤ 7.5% | 690-1081-16-00 |
| Si50.8NL101.6D80 | 2" diameter x 2" | I to V Positive | ≤ 8% | 690-1109 |
| Si76.2NL76.2D85 | 3" diameter x 3" | I to V Positive | ≤ 8.5% | 690-1102 |
| Si50.8X101.6NL101.6D85 | 2" X 4" X 4" | I to V Positive | ≤ 8.5% | TBD |
| USB OUTPUT ADAPTER, SiPM ANALOG | 690-1071 | |||
带 SiPM 的 LaBr 和增强型 LaBr 检测器
| Scintillator | Model | Scintillator Dimensions | Electronics | PHR Specifications | Sales Drawing |
| for Cs-137 End-on | |||||
| LaBr3 | Si38.1BL38.1D40 | 1.5" diameter x 1.5" | I to V Positive | ≤ 4% | 690-1118 |
| Enhanced LaBr | Si38.1BE38.1D35 | 1.5" diameter x 1.5" | I to V Positive | ≤ 3.5% | 690-1142 |

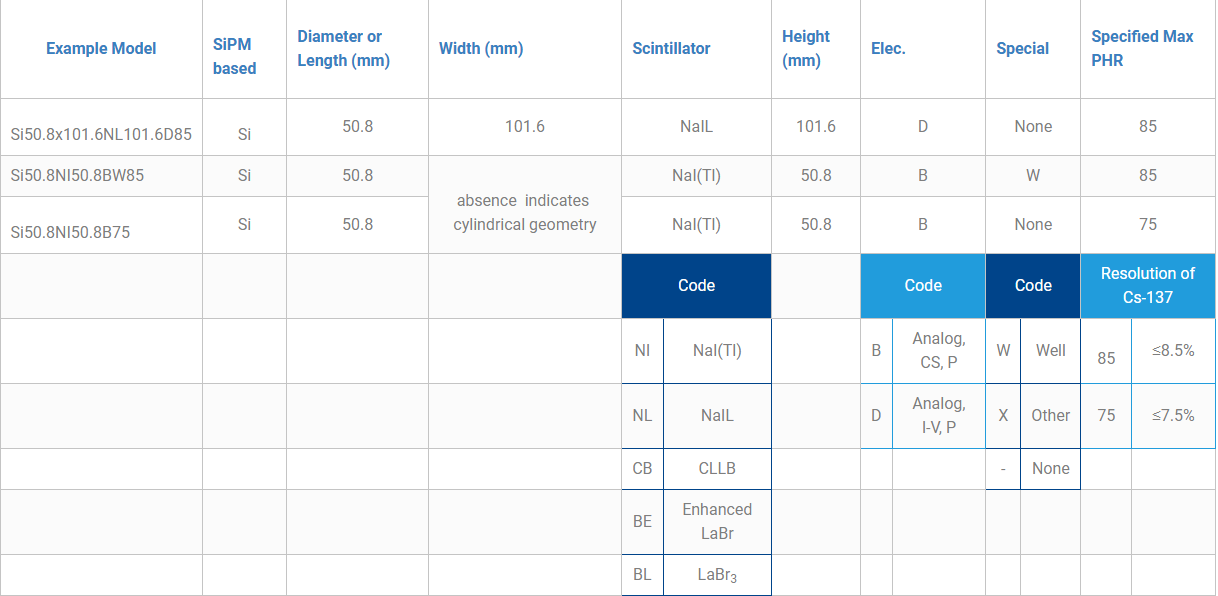

解释型号
