Andon光電傳感器插座——Renesas

發布時間：2024-03-21 14:23:02     瀏覽：659

Andon Electronics是全球領先的精密插座制造廠商，其生產的插座廣泛應用于PCB板上，能夠與圖像傳感器、光電傳感器、氣體傳感器、電源轉換器、電池、晶體振蕩器、保險絲、繼電器等各類電子設備完美接插。

Renesas瑞薩電子是全球領先的汽車電子解決方案提供商之一，其產品線廣泛且多元化，涵蓋了傳感器、控制器、軟件和算法等多個領域。Renesas瑞薩傳感器具有高精度、高可靠性和快速響應的特點，可以廣泛應用于汽車的各種感知和監測功能中。

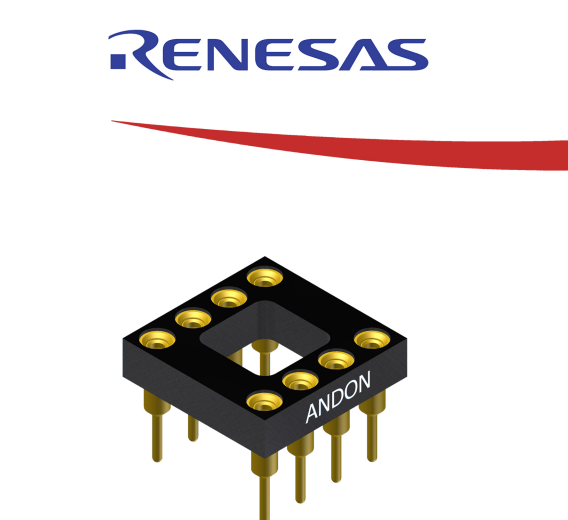

Andon光電傳感器插座——Renesas

Andon光電傳感器插座可適配于Renesas品牌，它可以精確地匹配Renesas光電傳感器的接口標準，有效減少信號損失，提升傳感器數據的準確性和可靠性，確保在復雜和多變的汽車環境中能夠穩定、高效地傳輸數據。

具體如下：

RENESAS Model NumberAndon Part Number Replace "XXX" with Terminal TypeThru-HoleSurface MountPin ? [in]Figure NumberPage Number
NR8300FP-CCR080-0403-01N-XXX-R27-L14274K281K.01893
NR8360JP-BCC10-314-14-01-XXX-R27-L1401S93S.01863
NR8800FS-CBR080-0403-01N-XXX-R27-L14274K281K.01893
NV4V31MFR056-0403-01N-XXX-R27-L14400T4414T4.01283
NV4V31SFR056-0403-01N-XXX-R27-L14400T4   414T4  .01283
NV4V41SF  R056-0403-01N-XXX-R27-L14400T4   414T4 .01283
NX6240GP  R080-0404-01N-XXX-R27-L14274K   281K .01812
NX6308GH  R080-0404-01N-XXX-R27-L14274K   281K .01812
NX6309GH  R080-0404-01N-XXX-R27-L14274K   281K .01812
NX6314EH  R080-0404-01N-XXX-R27-L14274K   281K. 01812
NX6342EP  R080-0404-01N-XXX-R27-L14274K   281K .01812
NX6350EP SERIES  R080-0404-01N-XXX-R27-L14274K   281K .01812
NX6350GP SERIES  R080-0404-01N-XXX-R27-L14274K   281K.01812
NX6351GP SERIES  R080-0404-01N-XXX-R27-L14274K   281K .01812
NX6352GP SERIES  R080-0404-01N-XXX-R27-L14274K   281K.01812
NX6353EP SERIES  R080-0404-01N-XXX-R27-L14274K   281K .01812
NX6410GH  R080-0404-01N-XXX-R27-L14274K   281K .01812
NX6411GH  R080-0404-01N-XXX-R27-L14274K   281K .01812
NX6414EH  R080-0404-01N-XXX-R27-L14274K   281K .01812
NX6511GH  R080-0404-01N-XXX-R27-L14274K   281K .01812
NX6514EH  R080-0404-01N-XXX-R27-L14274K   281K .01812
NX7335AN-AA  R080-0404-01N-XXX-R27-L14274K   281K .01812
NX7338BF-AA  R080-0404-01N-XXX-R27-L14274K   281K .01812
NX7339BB-AA  R080-0404-01N-XXX-R27-L14274K   281K .01812
NX7437AG-AA  R080-0404-01N-XXX-R27-L14274K   281K .01812
NX7537BF-AA  R080-0404-01N-XXX-R27-L14274K   281K .01812
NX7539BB-AA  R080-0404-01N-XXX-R27-L14274K   281K .01812
NX7563JB-BC  C10-314-14-01-XXX-R27-L1401S   93S .01863
NX7637BF-AA  R080-0404-01N-XXX-R27-L14274K   281K .0181
2
NX7639BB-AA  R080-0404-01N-XXX-R27-L14274K   281K .01812
NX8315XC  R080-0404-01N-XXX-R27-L14274K   281K .01812
NX8316XC  R080-0404-01N-XXX-R27-L14274K   281K .01812
NX8601BF-AA  R080-0404-01N-XXX-R27-L14274K   281K .01812
NX8602BF-AA  R080-0404-01N-XXX-R27-L14274K   281K.01812
NX8663JB-BC  C10-314-14-01-XXX-R27-L1401S   93S.01863
PS2502-1-DIP  C10-304-04-01-XXX-R27-L1401S   93S .01822
PS2502-4-DIP  C10-316-16-01-XXX-R27-L1401S   93S .01832
PS2503-1-DIP  C10-304-04-01-XXX-R27-L1401S   93S .01822
PS2505-1-DIP  C10-304-04-01-XXX-R27-L1401S   93S .01822
PS2505-4-DIP  C10-316-16-01-XXX-R27-L1401S   93S .01832
PS2506-1-DIP  C10-304-04-01-XXX-R27-L1401S   93S .01822
PS2513-1-DIP  C10-304-04-01-XXX-R27-L1401S   93S .01822
PS2514-1-DIP  C10-304-04-01-XXX-R27-L1401S   93S .01822
PS2535-1-DIP  C10-304-04-01-XXX-R27-L1401S   93S .01822
PS2561-1-DIP  C10-304-04-01-XXX-R27-L1401S   93S .01822
PS2561BL1-1-DIP  C10-404-04-01-XXX-R27-L1401S   93S .01873
PS2561D-1-DIP  C10-304-04-01-XXX-R27-L1401S   93S .01822
PS2561DL1-1-DIP  C10-404-04-01-XXX-R27-L1401S   93S .01873
PS2561DL1-1-DIP  C10-404-04-01-XXX-R27-L1401S   93S .01873
PS2562-1-DIP  C10-304-04-01-XXX-R27-L1401S   93S .01822
PS2562L1-1-DIP  C10-404-04-01-XXX-R27-L1401S   93S .01873
PS2565-1-DIP  C10-304-04-01-XXX-R27-L1401S   93S .01822
PS2565L1-1-DIP  C10-404-04-01-XXX-R27-L1401S   93S .01873
PS8501-DIP  C10-408-08-01-XXX-R27-L1401S   93S .01853
PS8501L1-DIP  C10-408-08-01-XXX-R27-L1401S   93S .01853
PS8501L2-DIPC10-408-08-01-XXX-R27-L1401S93S.01853
PS8501L3-DIPC10-408-08-01-XXX-R27-L1401S93S.01853
PS8502-DIPC10-408-08-01-XXX-R27-L1401S93S.01853
PS8502L1-DIPC10-408-08-01-XXX-R27-L1401S93S.01853
PS8502L2-DIPC10-408-08-01-XXX-R27-L1401S93S.01853
PS8502L3-DIPC10-408-08-01-XXX-R27-L1401S93S.01853
PS9505-DIPC10-408-08-01-XXX-R27-L1401S93S.01853
PS9505L1-DIPC10-408-08-01-XXX-R27-L1401S93S.01853
PS9505L2-DIPC10-408-08-01-XXX-R27-L1401S93S.01853
PS9505L3-DIPC10-408-08-01-XXX-R27-L1401S93S.01853
PS9506-DIPC10-308-08-01-XXX-R27-L1401S93S.01842
PS9506L1-DIPC10-308-08-01-XXX-R27-L1401S93S.01842
PS9506L2-DIPC10-308-08-01-XXX-R27-L1401S93S.01842
PS9506L3-DIPC10-308-08-01-XXX-R27-L1401S93S.01842
PS9531-DIPC10-408-08-01-XXX-R27-L1401S93S.01853
PS9531L1-DIPC10-408-08-01-XXX-R27-L1401S93S.01853
PS9531L2-DIPC10-408-08-01-XXX-R27-L1401S93S.01853
PS9531L3-DIPC10-408-08-01-XXX-R27-L1401S93S.01853

材料:

絕緣:高溫uL 94v - 0

端子:黃銅，符合ASTM-B16標準

電鍍:符合RoHS標準

R17端子:亞光錫/觸頭;黃金

R27端子:金色/觸頭:金色

R32端子:鍍錫/觸頭:鍍錫

其他鍍層可用

更多Andon品牌產品信息可咨詢立維創展。
